DESCRIPTION

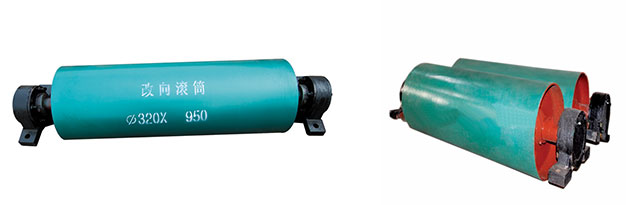

Bend pulleys is used for changing the belt running direction or increasing the wrap angle between conveyor belt and driving pulley.
Characteristics of belt conveyor tail pulley
|
Description |
Heavy duty carbon steel bend drum bottom conveyor belting pulley for conveyor system |
|
Type |
tail bend bottom conveyor pulley |
|
Pipe / tube/shell |
1) Material : Q235 welded steel |
|
Type conveyor |
DTII DTII(A) TD75 |
|
Shaft / axis |
1) Material: Cold drawn steel C45(DIN) |
|
Bearing |
big roving crack, deep groove ball with double sealing |
|
Welding |
pipe and bearing housing with automatic welding |
|
Surface |
smooth steel surface, rubber face |
|
Color |
Red, yellow, blue or as require |
|
Standard |
ISO9001:2008 CEMA DIN TUV |
|
Application |
Used in coal mine, steel industry, cement industry and so on |
|
Service life |
More than 30,000 hours |
The specifications of belt conveyor tail pulley
|
Type |
Belt width(mm) |
Standard diameter(mm) |
Length(mm) |
|
motor pulley |
500 |
500 |
Length of pulley |
|
650 |
500~630 |
||
|
800 |
630~1000 |
||
|
1000 |
800~1150 |
||
|
1200 |
800~1150 |
||
|
1400 |
1000~1350 |
||
|
1600 |
1150~1600 |
||
|
1800 |
1150~1800 |
||
|
2000 |
1350~2000 |
||
|
2200 |
1600~2200 |
||
|
2400 |
1800~2400 |
